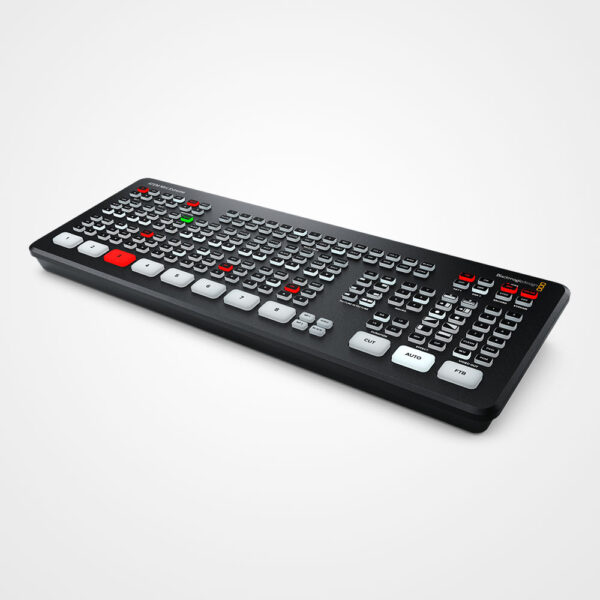

Blackmagic Design ATEM Mini Extreme
Transform Your Live Production with ATEM Mini Extreme – Professional 8-Input Live Production Switcher featuring Advanced Streaming Capabilities, Multiple HDMI Outputs, and Broadcast-Grade Effects for Unmatched Production Quality
Experience professional-grade live production with this versatile switcher featuring 8 HDMI inputs, advanced chroma keying, multiple HDMI outputs, and built-in streaming capabilities. Perfect for content creators and broadcasters requiring comprehensive production control and superior quality output.
Description
The Blackmagic Design ATEM Mini Extreme represents the pinnacle of compact live production technology, designed for professionals who demand broadcast-quality features in a portable format. This advanced switcher offers eight HDMI inputs supporting up to 1080p60, making it ideal for complex multi-camera productions. The system features a built-in hardware encoder for direct streaming to platforms like YouTube and Facebook, while dual USB ports enable recording and webcam output simultaneously. Its comprehensive Fairlight audio mixer includes 6-band parametric EQ and dynamics processing for professional sound control. The device includes advanced features like chroma keying, picture-in-picture effects, and DVE transitions, all accessible through an intuitive control panel. With its dual HDMI outputs, customizable multiview monitoring, and extensive media pool capacity, the ATEM Mini Extreme delivers professional broadcast capabilities in a compact, desktop format. Whether used for live streaming, virtual events, or complex production scenarios, this switcher provides the tools needed for professional-quality content creation.
| Specification | Details |
| Video Inputs | 8 x HDMI (up to 1080p60) |
| Video Outputs | 2 x HDMI |
| USB Ports | 2 x USB-C |
| Network Connection | 1 x Ethernet port |
| Audio Inputs | 2 x 3.5mm stereo |
| Video Standards | HD up to 1080p60 |
| Format Conversion | Automatic on all inputs |
| Streaming Capability | Direct via Ethernet |
| Recording Format | H.264 |
| Multiview Outputs | Up to 16 views |
| Keyers | 4 upstream, 2 downstream |
| Chroma Key | Advanced processing |
| Media Pool | 20 still images |
| Transitions | Cut, Mix, Dip, Wipe, DVE |
| Audio Mixer | Fairlight audio |
| Audio Processing | 6-band parametric EQ |
| Compressor | |
| Limiter | |
| Expander/Gate | |
| Control Interface | Physical buttons |
| Software Control | ATEM Software Control |
| Power Input | 12V DC |
| Power Consumption | 36W |
| Dimensions | 14.5 x 5.3 x 1.8 inches |
| Weight | 2.2 lbs (1 kg) |
| Operating Temperature | 5° to 40° C |
| Storage Temperature | -10° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
| Effects | Picture-in-picture |
| DVE transitions | |
| SuperSource | |
| Monitoring | Built-in multiview |
| Tally Support | Yes |
| Timecode | Built-in |
| Software Updates | Via USB |
| Warranty | 12 months |
| Additional Features | Macro recording |
| Custom transitions | |
| Advanced keying | |
| Audio follows video | |
| Compatibility | Most HDMI cameras |
| External recorders | |
| Streaming platforms | |
| Professional monitors |
